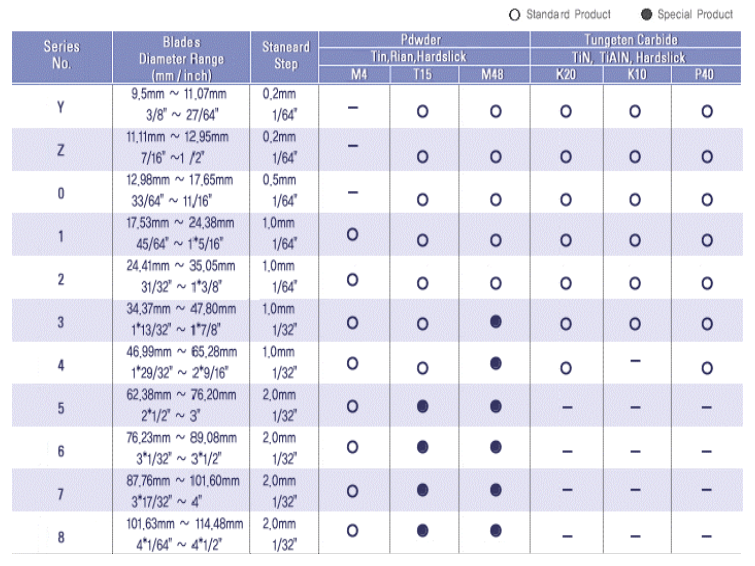

○ Standard Product ● Special Product |
|
Series
No. |
Blades
Diameter Range
(mm/inch) |
Stancard
Step |
Pdwder |
Tungetcn Carbide |
|
|
Tin,Rain,Hardslick |
Tin,Tian,Hardslick |
|
|
M4 |
T15 |
M48 |
K20 |
K10 |
P40 |
|
|
Y |
9.5mm～11.07mm
3/8"～27/64" |
0.2mm
1/64" |
- |
○ |
○ |
○ |
○ |
○ |
|
|
Z |
11.11mm～12.95mm
7/16"～1/2" |
0.2mm
1/64" |
- |
○ |
○ |
○ |
○ |
○ |
|
|
0 |
12.98mm～17.65mm
33/64"～11/16" |
0.5mm
1/64 |
- |
○ |
○ |
○ |
○ |
○ |
|
|
1 |
17.53mm～24.38mm
45/64"～1*5/16" |
1.0mm
1/64" |
○ |
○ |
○ |
○ |
○ |
○ |
|
|
2 |
24.41mm～35.05mm
31/32"～1*3/8" |
1.0mm
1/64" |
○ |
○ |
○ |
○ |
○ |
○ |
|
|
3 |
34.37mm～47.80mm
1*13/32"～1*7/8" |
1.0mm
1/32" |
○ |
○ |
● |
○ |
○ |
○ |
|
|
4 |
46.99mm～65.28mm
1*29/32"～2*9/16" |
1.0mm
1/32" |
○ |
○ |
● |
○ |
- |
○ |
|
|
5 |
62.38mm～76.20mm
2*1/2"～3" |
2.0mm
1/32" |
○ |
● |
● |
- |
- |
- |
|
|
6 |
76.23mm～89.08mm
3*1/32"～3*1/2" |
2.0mm
1/32" |
○ |
● |
● |
- |
- |
- |
|
|
7 |
87.76mm～101.60mm
3*17/32～4" |
2.0mm
1/32" |
○ |
● |
● |
- |
- |
- |
|
|
8 |
101.63mm～114.48mm
4*1/64"～4*1/2" |
2.0mm
1/32" |
○ |
● |
● |
- |
- |
- |
