Drill Insert
Series
|

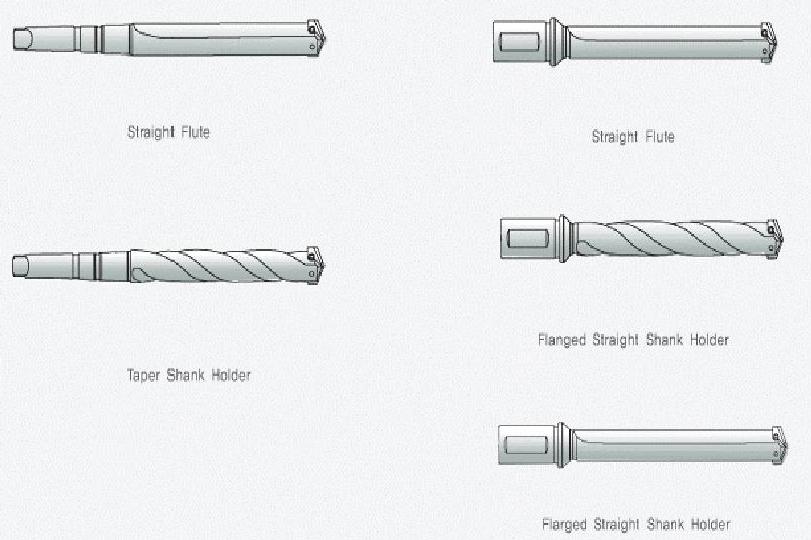

Horldern
Series
|
Size Range
|
Outside
Diameter
|
|
|
Y
|
Y
|
3/8?27/64" (9.50?11.0mm)
|
9.4mm
|
|
|
Z
|
Z
|
7/16?1/2" (11.5?12.5mm)
|
10.8mm
|
|
|
0
|
0
|
33/64?11/16" (13.0?17.5mm)
|
12.5mm
|
|
|
0.5
|
39/64?11/16" (15.5?17.5mm)
|
15.0mm
|
|
|
1
|
1
|
45/64?15/16" (18.0?24.0mm)
|
17.2mm
|
|
|
1.5
|
55/64?15/16" (22.0?24.0mm)
|
21.2mm
|
|
|
2
|
2
|
31/32?1*3/8" (25.0?35.0mm)
|
24.1mm
|
|
|
2.5
|
1*3/16"?1*3/8" (30.0?35.0mm)
|
29.1mm
|
|
|
3
|
3
|
1*13/32?1*7/8" (36.0?47.0mm)
|
34.0mm
|
|
|
4
|
4
|
1*29/32?2*9/16" (48.0?65.0mm)
|
46.6mm
|
|
|
5&6
|
5
|
2*1/2?3*1/2" (64.0?88.0mm)
|
62.0mm
|
|
|
7&8
|
7
|
3*17/32?4*1/2" (90.0?114.0mm)
|
87.3mm
|
